Description
| Standards and Protocols | IEEE 802.3, 802.3u, 802.3ab, 802.3x, 802.1p, 802.3bz |
|---|---|
| Interface | 8× 100Mbps/1Gbps/2.5Gbp Ports, Auto-Negotiation, Auto-MDI/MDIX |
| Fan Quantity | Fanless |

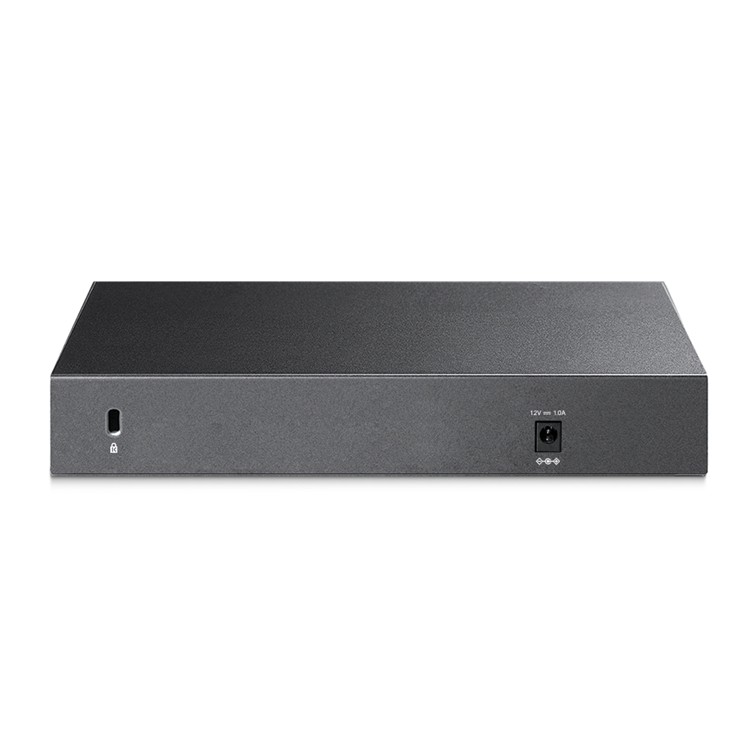

| External Power Supply | External Power Adapter (Output: 12 VDC / 1.0 A) |
| LED | • System Power: 1 • Link/Act Indicators: 8, 1 indicator per port built into each RJ-45 port |
| Dimensions ( W x D x H ) | 8.9×5.2×1.4 in (226×131×35 mm) |
| Max. Power Consumption | 8.45 W |
| Max. Heat Dissipation | 28.83 BTU/h |
| Switching Capacity | 40 Gbps |
|---|---|
| Packet Forwarding Rate | 29.8 Mpps |
| MAC Address Table | 4 K |
| Jumbo Frame | 12 KB |
| Advanced Features | • 802.3X Flow Control • 802.1p/DSCP QoS |
|---|---|
| Transmission Method | Store and Forward |
| Certification | CE, FCC ,RoHS |
|---|---|
| Package Content | • 8-Port 2.5G Multi-Gigabit Desktop Switch TL-SG108-M2 • Power Adapter • Installation Guide • Rubber Feet |
| Environment | • Operating Temperature: 0–40 °C (32–104 °F) • Storage Temperature: -40–70 °C (-40–158 °F) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing |
