Description
| Standards and Protocols | IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab , IEEE 802.3x |
|---|---|

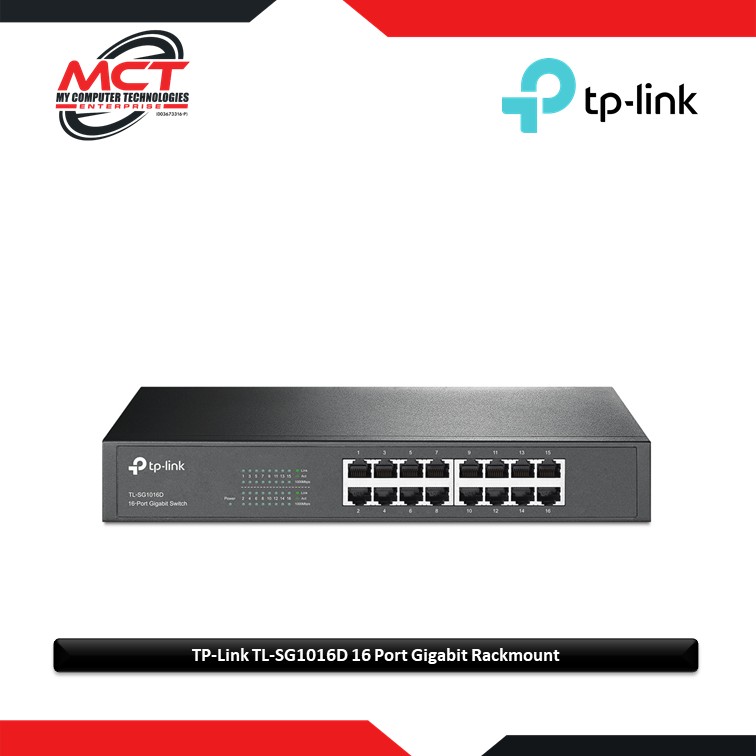

| Interface | 16 10/100/1000Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX) |
| Network Media | 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) 100BASE-TX/1000BASE-T: UTP category 5, 5e or above cable (maximum 100m) |
| Fan Quantity | Fanless |
| Physical Security Lock | No |

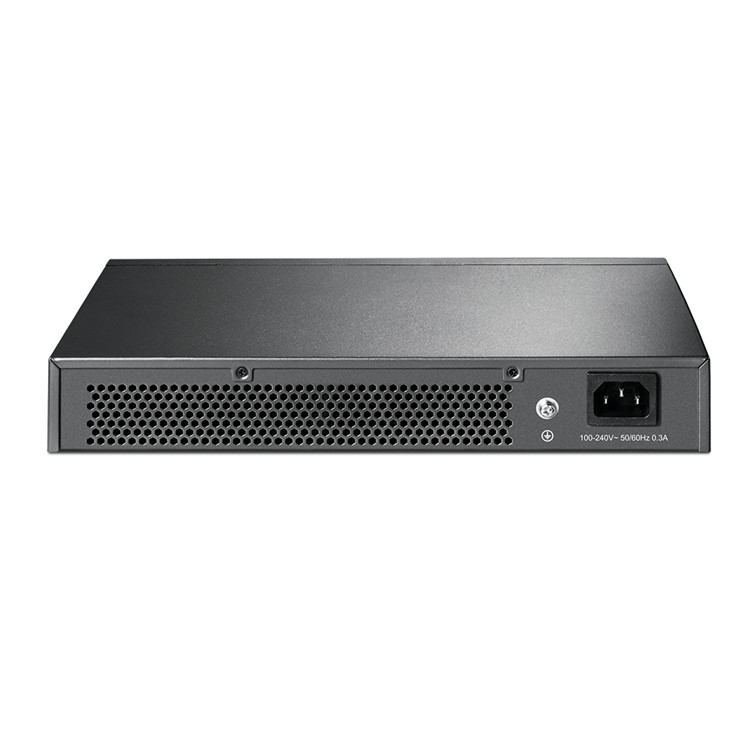

| Power Supply | 100-240VAC, 50/60Hz |
| Max. Power Consumption | Maximum: 9.26W (220V/50Hz) |
| Dimensions ( W x D x H ) | 11.6*7.1*1.7 in. (294*180*44 mm) |
| Max. Power Consumption | 9.95W(220V/50Hz) |
| Max. Heat Dissipation | 33.93BTU/h |
| Switching Capacity | 32Gbps |
|---|---|
| Packet Forwarding Rate | 23.8Mpps |
| MAC Address Table | 8K |
| Advanced Features | Isolation Mode: Ports 1-14 Loop Prevention: Ports 1-16 |
| Jumbo Frame | 10KB |
| Green Technology | Yes |
| Transmission Method | Store-and-Forward |
| Certification | FCC, RoHs |
|---|---|
| Package Content | 16-Port Gigabit Desktop/Rackmount Switch Power Cord Installation Guide Rackmount Kits Rubber Feet |
| Environment | Operating Temperature: 0℃~40℃ (32℉~104℉); Storage Temperature: -40℃~70℃ (-40℉~158℉); Operating Humidity: 10%~90% non-condensing; Storage Humidity: 5%~90% non-condensing |
