Description

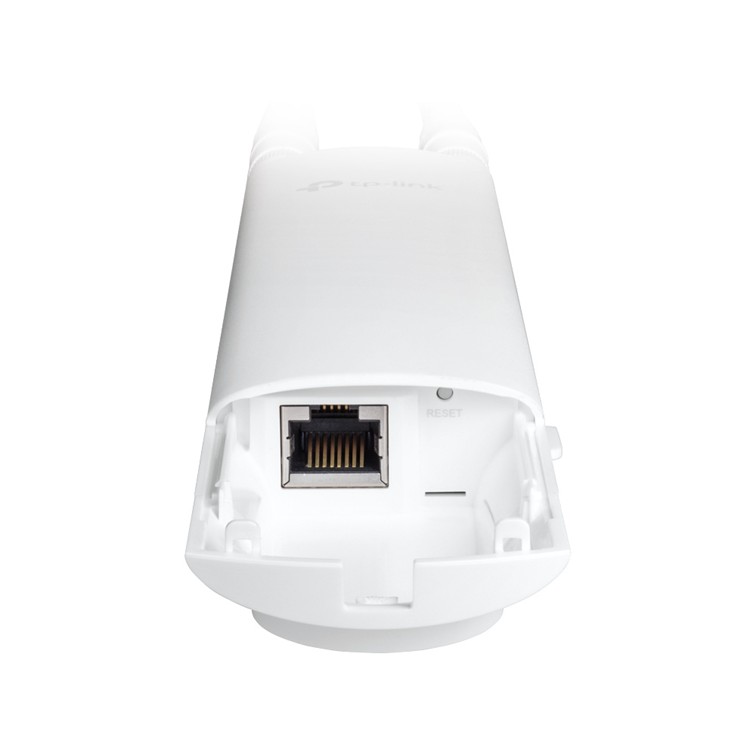

| Interface | Gigabit Ethernet (RJ-45)Port*1(Support 802.3af PoE and Passive PoE) |
|---|---|
| Button | Reset |
| Power Supply | 802.3af/A PoE 24V Passive PoE (+4,5pins; -7,8pins. PoE Adapter Included) |
| Max. Power Consumption | 10.5W |
| Dimensions ( W x D x H ) | 215.7*45*37.7mm (without antenna & mounting kit) 403.8*90.7*55.2mm (with antenna & mounting kit) |
| Antenna | 2.4GHz: 2 * 3dBi, 5GHz: 2 * 4dBi |
| Weatherproof Enclosure | IP65 |
| Mounting | Pole/Wall Mounting (Kits included) |
| Hardware Watch Dog | Yes |
| Concurrent Clients | 220+** |
|---|---|
| Wireless Standards | IEEE 802.11a/b/g/n/ac |
| Frequency | 2.4GHz, 5GHz |
| Signal Rate | 802.11ac: 5G:6.5 Mbps to 867Mbps(MCS0-MCS9,NSS = 1 to 2 VHT20/40/80) 2.4G:78Mbps to 300Mbps (MCS8-MCS9 VHT20/40, NSS=1 to 3) 802.11n: 6.5 Mbps to 300 Mbps (MCS0-MCS15, VHT 20/40) 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps 802.11b: 1, 5.5, 11Mbps 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| Wireless Functions | • Multiple SSIDs（Up to 16 SSIDs, 8 for each band） • Enable/Disable Wireless Radio • Automatic Channel Assignment • Transmit Power Control （Adjust Transmit Power on dBm） • QoS(WMM) • MU-MIMO • Seamless Roaming* • Omada Mesh* • Airtime Fairness • Beamforming • Band Steering • Load Balance • Rate Limit • Reboot Schedule • Wireless Schedule • Wireless Statistics based on SSID/AP/Client |
| Wireless Security | • Captive Portal Authentication* • Access Control • Wireless Mac Address Filtering • Wireless Isolation Between Clients • SSID to VLAN Mapping • Rogue AP Detection • 802.1X Support |
| Transmission Power | • CE: <20 dBm (2.4 GHz, EIRP), <27 dBm(5 GHz, EIRP) • FCC: <23 dBm (2.4 GHz), <22 dBm(5 GHz) |
| Omada App | Yes |
|---|---|
| Centralized Management | • Omada Cloud-Based Controller • Omada Hardware Controller (OC300) • Omada Hardware Controller (OC200) • Omada Software Controller |
| Omada Controller Software | Yes |
| Cloud Access | Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller. |
| Email Alerts | Yes |
| Management MAC Access Control | Yes |
| SNMP | v1, v2c |
| System Logging Local/Remote Syslog | Yes |
| SSH | Yes |
| Web-based Management | Yes |
| L3 Management | Yes |
| Multi-site Management | Yes |
| Management VLAN | Yes |
| Zero-Touch Provisioning | Yes. Requiring the use of Omada Cloud-Based Controller. |
| Certification | CE、FCC、RoHS |
|---|---|
| Package Content | Access Point EAP225-Outdoor Passive PoE Adapter Power Cord Mounting Kits Installation Guide Waterproof Ruber Insert Waterproof Antenna |
| System Requirements | Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux |
| Environment | Operating Temperature: -30℃~70℃ (-22℉~158℉) Storage Temperature: -40℃~70℃ (-40℉~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
