Description
| Standards and Protocols | Wi-Fi 7 IEEE 802.11be/ax 6 GHz IEEE 802.11be/ax/ac/n/a 5 GHz IEEE 802.11be/ax/n/b/g 2.4 GHz |
|---|---|
| WiFi Speeds | BE22000 6 GHz: 11530 Mbps (802.11be) 5 GHz: 8647 Mbps (802.11be) 2.4 GHz: 1376 Mbps (802.11be) |
| WiFi Range | Broader Whole Home Coverage
TP-Link Mesh Technology AI-Driven Mesh 8× High-Gain Antennas (Internal) Tri-Band |
| WiFi Capacity | Very High
Tri-Band 4×4 MU-MIMO OFDMA 12 Streams |
| Working Modes | Router Mode Access Point Mode |
| Advanced Features | • Multi-Link Operation (MLO) • 320 MHz Channel • 4K-QAM • Multi-RUs • Works with Alexa and Google Assistant |
| Network Security | SPI Firewall Access ControlHomeShield Security Real-Time IoT Protection |
|---|---|
| Guest Network | 1× 6 GHz Guest Network 1× 5 GHz Guest Network 1× 2.4 GHz Guest Network Effective Time |
| VPN Server | • OpenVPN Server • PPTP VPN Server • L2TP/IPSec VPN Server |
| VPN Client | • OpenVPN Client • PPTP VPN Client • L2TP/IPSec VPN Client |
| WiFi Encryption | WPA-Personal WPA2-Personal WPA3-Personal |

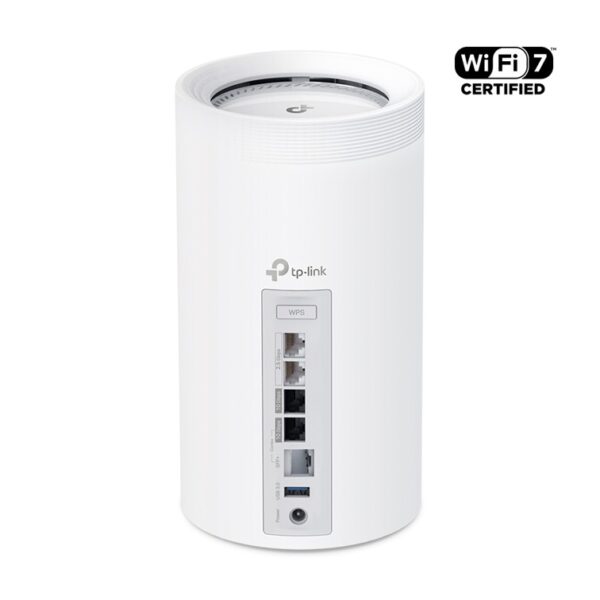

| Ethernet Ports | • 1× 10 Gbps • 1× 10 Gbps SFP+/RJ45 Combo • 2× 2.5 Gbps*Per Deco Unit Supports WAN/LAN auto-sensing |
|---|---|
| USB Support | 1× USB 3.0 Port
FTP Server |
| Buttons | 1× Reset Button 1× WPS |
| Advanced Features | • Reboot Schedule • Tapo/Kasa Onboarding • IoT network & Device Isolation • Static Route Function • Node/Band Connection Preference |
|---|---|
| Protocols | IPv4 IPv6 |
| Service Kits | HomeShield |
| Parental Controls | HomeShield Parental Controls
Youtube Restriction |
| WAN Types | Dynamic IP Static IP PPPoE PPTP L2TP |
| Quality of Service | HomeShield QoS
QoS by Device |
| Cloud Service | OTA Firmware Upgrade TP-Link ID DDNS |
| NAT Forwarding | Port Forwarding UPnP |
| IPTV | IGMP Proxy IGMP Snooping Bridge Tag VLAN |
| DHCP | Address Reservation DHCP Client List Server |
| DDNS | TP-Link |
| Management Features | Deco App |
| Network Services Enabled by Default | Web Server Manage and configure device through web (HTTP/HTTPS) • Port: 80/443   Protocol: TCP DNS DHCP Server App management |
|---|---|
| Dimensions (W×D×H) | 5.04 × 5.04 × 9.29 in (128 × 128 × 236 mm) |
|---|---|
| Package Content | Deco BE85 (3-pack) 3 Deco BE85 units 1 RJ45 Ethernet cable 3 Power adapters Quick Installation GuideDeco BE85 (2-pack) 2 Deco BE85 units 1 RJ45 Ethernet cable 2 Power adapters Quick Installation Guide Deco BE85 (1-pack) |
| Certifications | CE, FCC, RoHS |
|---|---|
| Environment | Operating Temperature: 0°C~40°C (32 °F~104 °F) Storage Temperature: -40°C~60°C (-40 °F~140 °F) Operating Humidity: 10%~90% RH Storage Humidity: 5%~90% RH |
