Totolink LR1200 AC1200 Dual Band 4G LTE Router

Original price was: RM229.00.Current price is: RM223.00.

Complies the IEEE 802.11ac/a/b/g/n standards.
Convenient 4G network access, share your 4G LTE network with multiple Wi-Fi devices.
Creates a simultaneous dual band Wi-Fi network ,with maximum speeds of up to 300Mbps on the 2.4GHz band and 867Mbps on the 5GHz band.
Powerful , integrated antennas provide stable wireless connections and better coverage.
Supports the TDD-LTE，FDD-LTE,TD-SCDMA, WCDMA,CDMA2000,1xEV-DO,GSM,GPRS,EDGE network type.
Requires no configuration ,just insert a SIM card and turn it on to enjoy a fast wireless connection.
Provides 64/128-bit WEP, WPA, WPA2 and WPA/WPA2 encryptions.
Supports IP, MAC, URL filtering , Port Forwarding and DMZ
Supports high standard of 8KV/15KV ESD protection.

SKU: TOTOLINK-LR-1200 Categories: 4G Router, Networkings, Routers / Modems Brand: Totolink

Description

Hardware

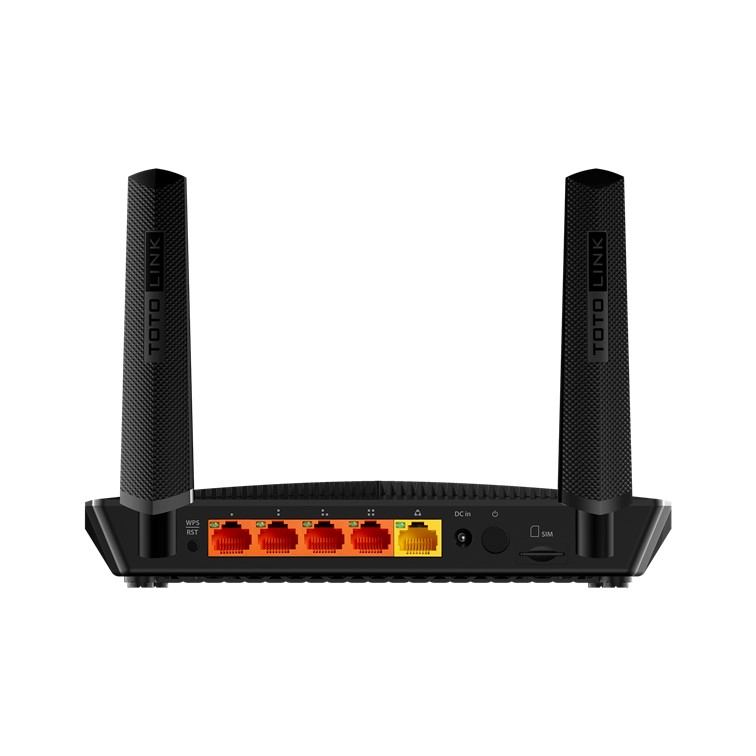

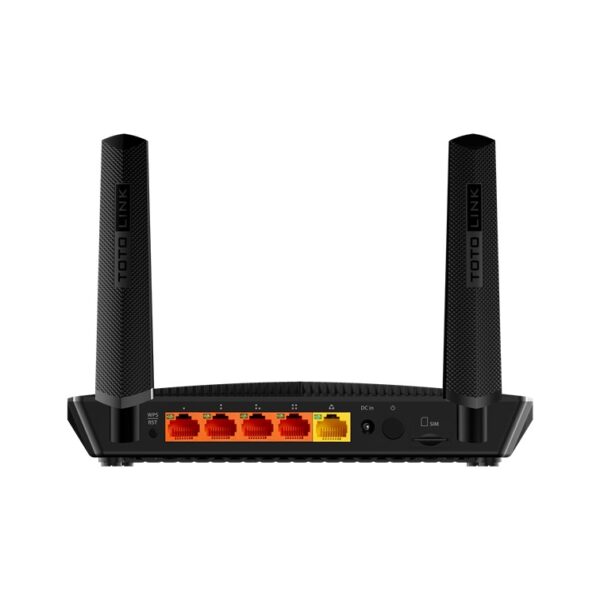

Interface	– 1 * 10/100M WAN Port (With LED) – 4 * 10/100M LAN Port(With LED) – 1 * Standard SIM card slot, – 1 * DC jack
Power Supply	– DC 12V / 1A
Button	– 1 RST/WPS Button – 1Power On/Off Button
LED Indicator	– 1 Sys, 1 SMS, 1 WIFI, 12G/3G, 1LTE,4Signal
Antenna	– 2 * 5dBi internal antennas (2.4/5GHz), – 2 * 5dBi detachable antennas (4G)
Dimensions (L x W x H)	– 120X180 X256mm

Wireless
Standards		– IEEE 802.11ac, – IEEE 802.11a, – IEEE 802.11b, – IEEE 802.11g , – IEEE 802.11n
RF Frequency		– 2.4GHz/5GH
Data Rate		– 2.4GHz: Up to 300Mbps – 5GHz: Up to 867Mbps
EIRP		– 2.4GHz < 20dBm – 5GHz < 20dBm
Wireless Security		– WPA2/WPA Mixed
Reception Sensitivity		– 2.4G:11b 11M：-81dBm@8% PER 11g 54M：-68dBm@10% PER 11n HT20 MCS7：-65dBm@10% PER HT40 MCS7：-62dBm@10% PER – 5G: 11a 54M：-68dBm@10% PER 11n HT20 MCS7：-65dBm@10% PER HT40 MCS7：-62dBm@10% PER 11ac VHT80 MCS9：-51dBm@10% PER

LTE Mode
LTE chip(PCIe, optional, customizable)		– Qualcomm MDM9x07
LTE Network Type and Band (1)		– 4G:FDD-LTE B1,B3,B5,B8 TDD-LTE B38,B39,B40,B41 – 3G: TD-WCDMA B34,B39, WCDMA:B1,B8, CDMA2000*BC0,1XEVDO, – 2G: GSM&900/1800
LTE Network Type and Band (2)		– 4G:FDD-LTE B1,B3,B5,B7,B8,B20, TDD-LTE B38,B40,B41 – 3G: WCDMA B1/B5/B8 – 2G: GSM B3,B8
LTE Network Type and Band (3)		– 4G:FDD-LTE B1,B2,B3,B4,B5,B7,B8,B28. TDD-LTE B40 – 3G: WCDMA B1,B2,B5,B8

Software
Home State	– WAN information, LAN information, System information
WAN Type	– Static IP, DHCP, PPPoE, 4G
Wireless Functions	– Multiple SSIDs, MAC Authentication, WPS
Firewall	– MAC Filtering, IP/Port Filtering, URL Filtering, DMZ
Management	– Password, System Config, Time Setup, Firmware update, System Log
Device capacity	– 2.4G: Max 32 users– 5G: Max 32 users

Others
System Requirements		– Microsoft® Windows® 98SE, NT, 2000, XP, Vista or Windows 7, 8, 10, Mac® OS, – NetWare®, UNIX® or Linux.
Package Contents		– LR1200 Wireless Router * 1 – Power Adapter * 1 – Ethernet Cable * 1 – SIM Adapter (Nano, Micro) – Quick Installation Guide * 1
Environment		– Operating Temperature: 0℃~50 ℃ (32 ℉~122℉) – Storage Temperature: -40℃~70 ℃ (-40 ℉~158℉) – Operating Humidity: 10%~90% non-condensing – Storage Humidity: 5%~90% non-condensing

Weight	1.2 kg
Dimensions	28 × 34 × 12 cm
